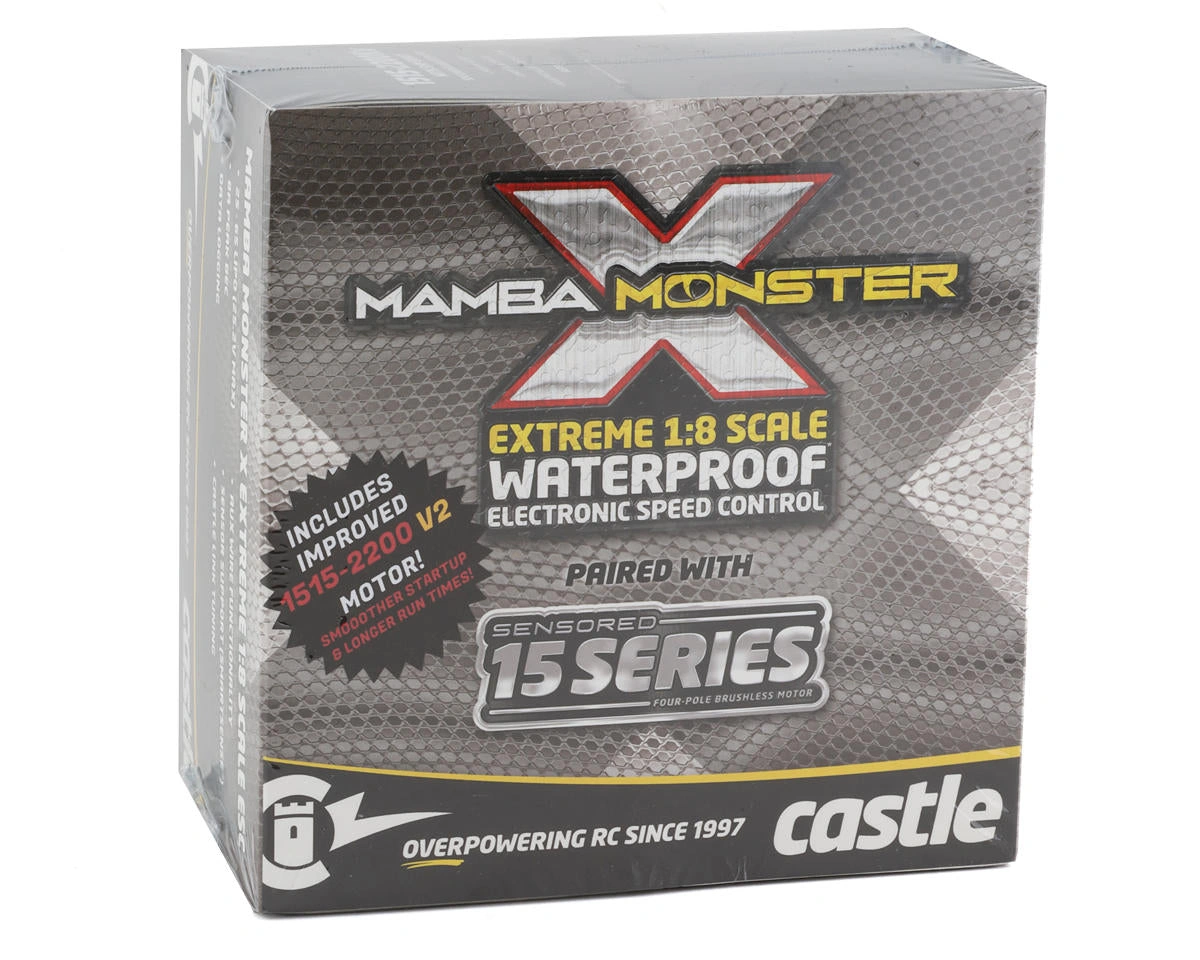

Unleash the Beast Castle Creations Monster X 1/8 Brushless Power Combo

Unleash your inner wanderer with this handcrafted marvel—a whisper of vintage charm meets modern adventure. Imagine sun-drenched afternoons and cobblestone streets—this piece embodies that feeling. It’s not just an item it's a story waiting to be told a tiny treasure that’s undeniably you. Seriously cool and totally unique grab it before it vanishes.

$167.48 $334.95

num:

description

Monster X 1/8 Brushless Combo with 1515 V2 Sensored Motor Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot) and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level!

MAMBA MONSTER X FEATURES:

Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
Housed in a durable injection molded case and potted in Waterproof epoxy to protect the electronics and promote efficient heat transfer
Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
Data Logging to capture and record performance data from your vehicle
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient Transmitter programming for six common adjustable settings including cutoff voltage and drag brake
SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as max Power and max Brake
Proudly designed, assembled and supported in Kansas USA and backed by Castle Creations' 1-Year Warranty

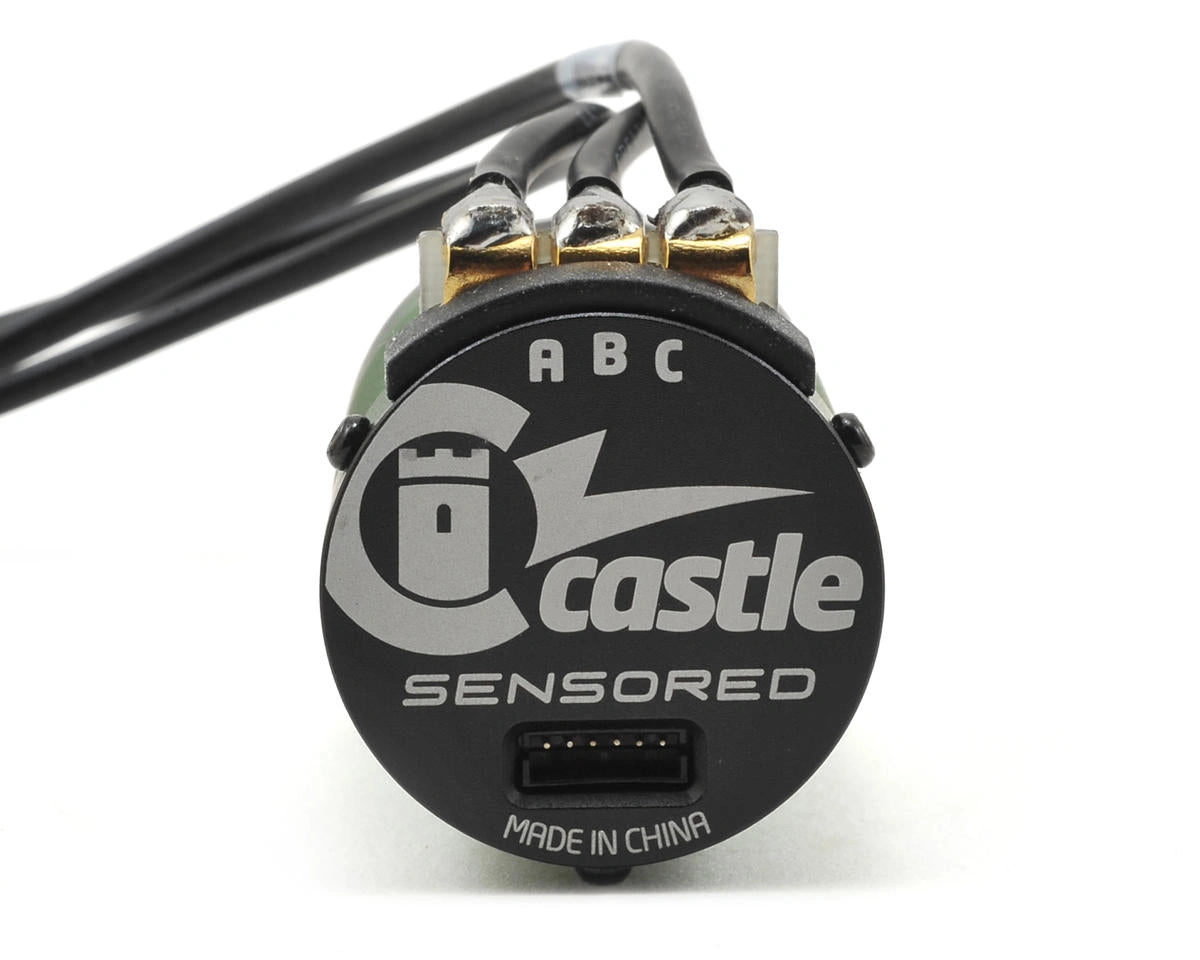

1515-2200 V2 MOTOR FEATURES:

Redesigned stator and rotor assemblies to improve magnetic flux.
Reduced magnetic cogging, producing less residual drag brake.
Increased efficiency, resulting in lower temperatures and longer run times.
Smoother start-up, reducing cogging or stuttering when starting from a stop.
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
Oversized NMB bearings and high-temperature, high-purity copper windings
High performance 0.2mm steel lamination stacked stator
Oversized, low-resistance, gold-plated solder tabs
Sensor board with high quality temperature stabilized sensors
T6 aluminum CNC-Machined front/rear end bell
Proudly designed and supported in Kansas, USA.

Specifications:

ESC:

Input voltage range: 2S-6S LiPo
Length: 2.09' (53mm)
Width: 1.93' (49mm)
Height: 1.44' (36.4mm)
Weight: 3.92 oz. (111.g)
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable**
Connector: 6.5mm female bullets for motor connection.
Wire Gauge: 8AWG
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters

Motor:

Application: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
Input Voltage Range: 2-6S LiPo
Kv Rating: 2200Kv
Max. RPM: 60.000
Diameter: 40mm (41.4mm with fins)
Length: 3.99' (101.2mm)
Shaft Size: 20mm(Length), 5mm(Diameter)
Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires.
Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm

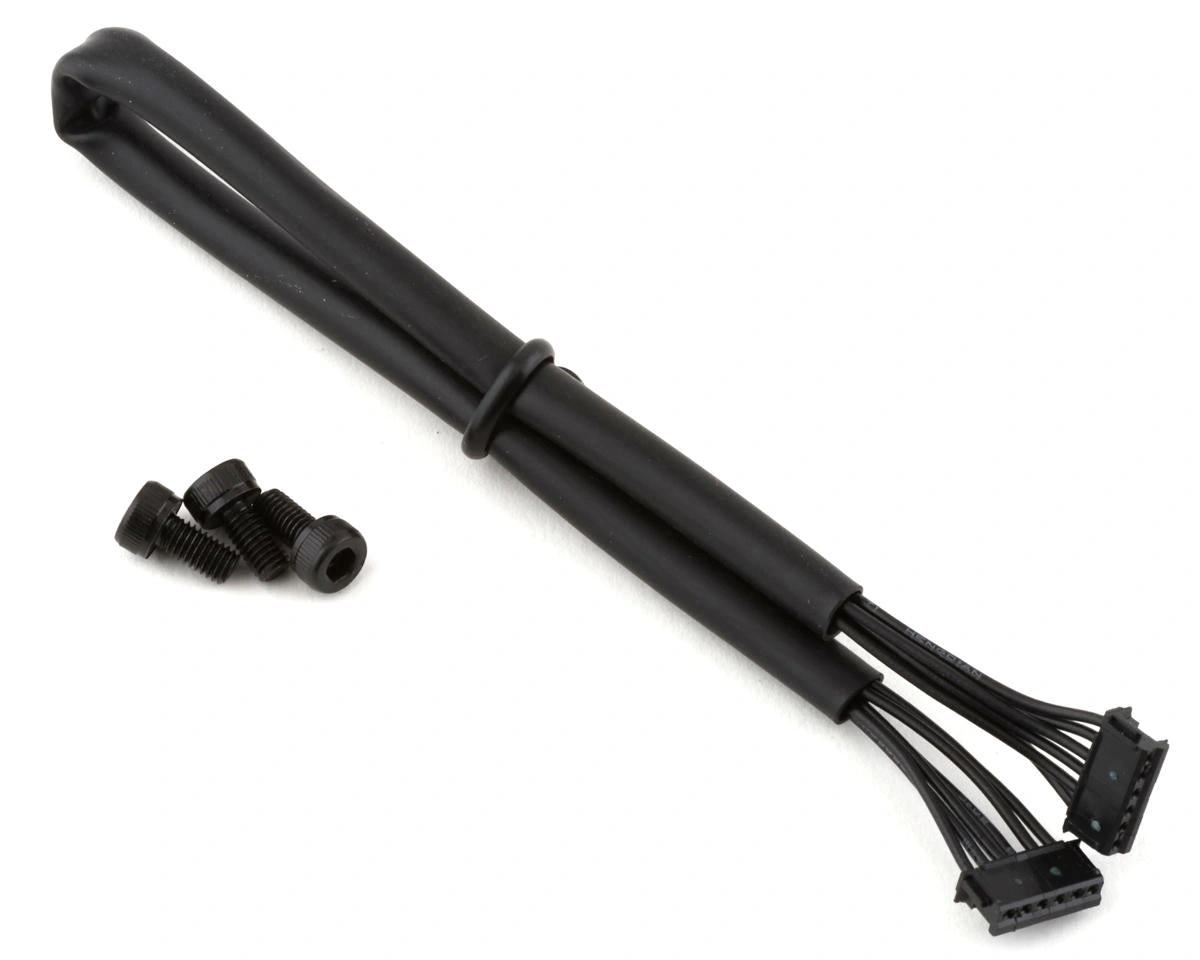

Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.
