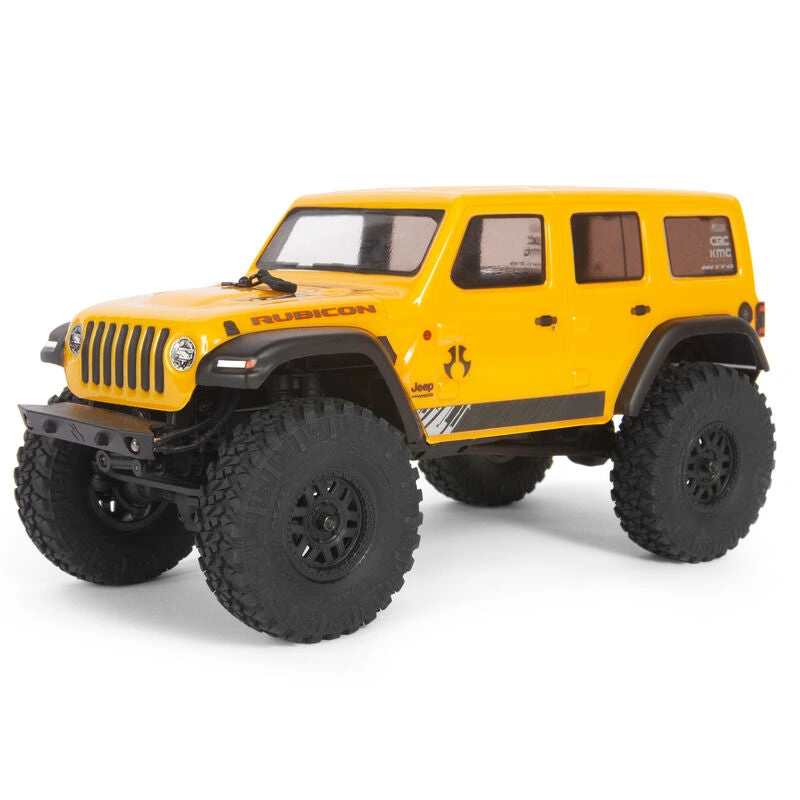

SCX24 Jeep Wrangler JLU CRC RTR Unleash the Tiny Beast 1/24 Scale Rock Crawling Fun!
Alright, buckle up buttercup, because this ain't your grandma's knick-knack. We're talkin' pure, unadulterated awesome. This... *thing* (and trust me, you want this thing) is less a product and more a portal to a better you. Think less "buy" and more "become." Imagine: the envy of all your friends, the object of your desires, the solution to all your problems (okay, maybe not all, but definitely some). Crafted by angels, blessed by unicorns, and hand-delivered by a really, really good-looking guy (or gal, we don't discriminate). Seriously though, you deserve this. Treat yourself. You won't regret it. Now, what are you waiting for Go get it.
- 3-Link front and 4-link rear suspension provides optimal handling.
- Two LED lights are included in the front bumper for night driving.
- Realistic steel frame rails add strength.
- True, full-time 4-wheel-drive.
- Comes with ESC, motor, and servo already installed.
In The Box
- (1) 1/24 SCX24 2019 Jeep Wrangler JLU CRC 4WD Rock Crawler Brushed RTR
- (1) 4-Channel 2.4Ghz Surface Transmitter
- (1) ESC/Receiver (installed)
- (1) 88T Motor (installed)
- (1) AS-1 Micro Servo (installed)
- (1) Dynamite® 7.4v 350mAh 2S LiPo Battery
- (1) USB Charger
- (4) AA Batteries
Needed to Complete
- Nothing! Everything you need to begin having fun with the 1/24 Jeep Wrangler JLU is included!
Features
- Includes radio transmitter and receiver and battery.
- Comes with ESC, motor, and servo already installed.
- Features a realistic new body design.
- Licensed wheels are modeled after 1:1 KMC Machete Wheels.
- Licensed tires are modeled after 1:1 Nitto Trail Grappler M/T tires.
- 3-Link front and 4-link rear suspension provides optimal handling.
- Two LED lights are included in the front bumper for night driving.
- Worm drive gear on front and rear axles creates additional ground clearance, improving on high-pinion axles.
- Realistic steel frame rails add strength.
- True, full-time 4-wheel-drive.
- Removing one clip allows the body to be tilted for battery access.
Overview
No matter where you are, the 1/24 scale Axial® SCX24™ Jeep® Wrangler JLU CRC 4WD makes it the scene for RC adventures. If you’re stuck at work, go crawling on your desk. A messy room becomes an ideal obstacle course. Take your vehicle outside — where its water-resistant electronics are safe from the elements — and set up an exciting trail with a few holes, twigs, and rocks. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase ground clearance, while realistic steel frame rails stand up to hard knocks. The Axial® SCX24™ Jeep® Wrangler JLU CRC performs like a winner and looks like one, too. The realistic body rides on licensed KMC Machete wheels and Nitto Trail Grappler tires. For quick battery access, just remove one clip to tilt back the body. Two LEDs in the front bumper light up the trail for night-time crawling. The SCX24™ Jeep® Wrangler JLU CRC comes ready-to-run with radio and electronics included and installed.
Video Overview
Support Video Playlist

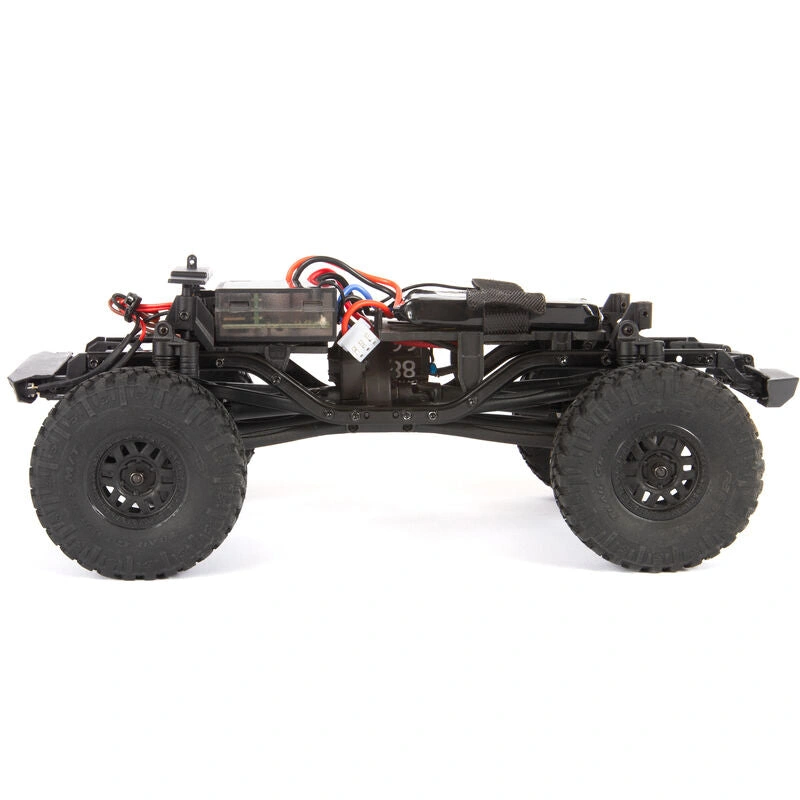

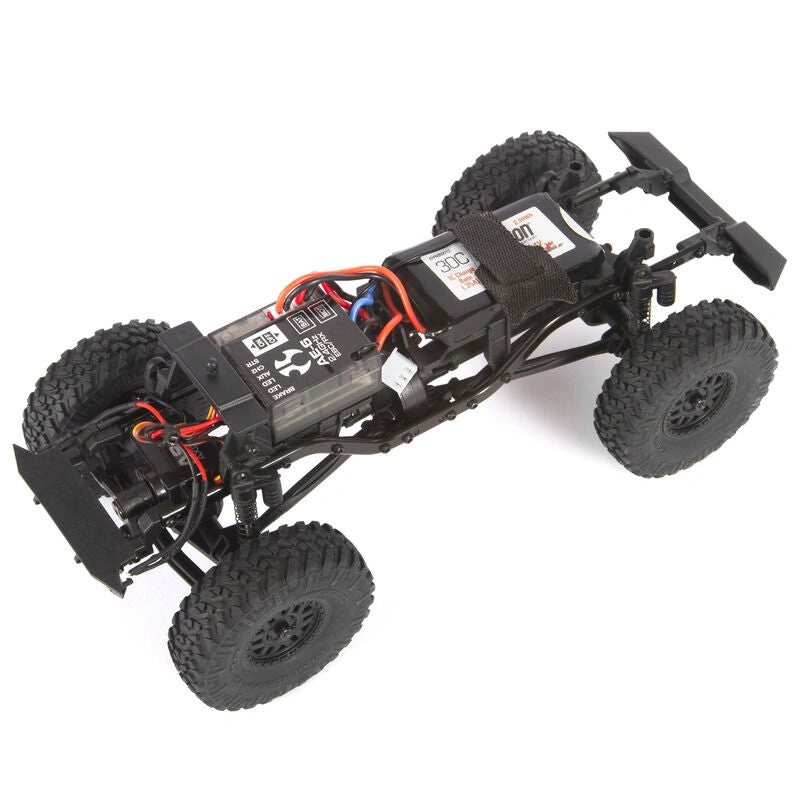

STEEL C-CHANNEL CHASSIS FRAME RAILS
Just like the 1/10th scale SCX10™ platform, the SCX24™ chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.
DYNAMITE® 88T BRUSHED MOTOR
The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It's mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.
WORM GEARS
The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.
DURABLE STEEL AXLES
Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep things running during tough climbs and rough trails.
SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
COILOVER SHOCK ABSORBERS
Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you've known and expect from Axial.

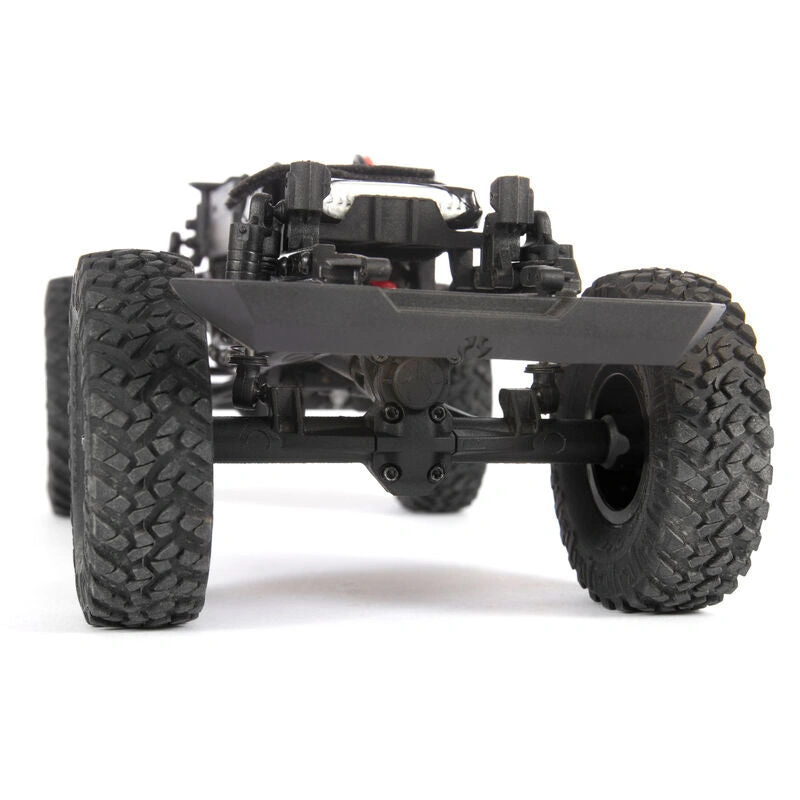

FRONT AND REAR SOLID AXLES
The front and rear axles consist of a two piece, molded plastic solid axle design. For optimal handling, the SCX24™ suspension features a three-link front and four-link rear setup.
LED LIGHTS INCLUDED
Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
4-LINK REAR SUSPENSION
The suspension geometry utilizes a 4-Link design for the rear which is optimized to reduce axle steer and torque twist. We've also included extra suspension links for adjusting your wheelbase length.
KMC XD229 MACHETE CRAWL WHEELS & NITTO TRAIL GRAPPLER M/T TIRES
Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in black and feature stunning scale details, despite the small scale.
The officially licensed Nitto Trail Grappler M/T Tires offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use.
HINGED BODY SYSTEM
The hinged body system offers easy access to on-board components. You can quickly reach the battery and chassis by removing just one body clip and swinging the body up.
FULL BALL BEARINGS
Just because the SCX24™ is smaller in size doesn't mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entire vehicle.
AXIAL AS-1 SERVO
Mounted just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also providing protection for the servo gears in the event of a bind or impact.
Product Specifications
| Receiver | Included |
| Shock Type | Coil-Over, Plastic Body, .9 - 1.3' (24 - 33.4mm) |
| Charger | Included |
| Differential | Worm gear 16T/4T |
| Battery | Included |
| Ground Clearance | 1.06' (27mm) |
| Motor Size | 030 Brushed Electric Motor |
| Product Length | 7.8' (198 mm) |
| Spur Gear | 55T |
| Suspension | 3 Link Front and 4 Link Rear |
| Wheel Width | .48' (12.4mm) |
| Approximate Assembly Time | No assembly required |
| Body | Axial Jeep JL Hardtop |
| Brakes | Integral with ESC |
| Pinion | 10T |
| Scale | 1/24 |
| Speed Control | Included |
| Motor Type | Brushed |
| Wheelbase | 5.2' (132 mm) |
| Rear Track | 3.9 in (99.5mm) |
| Front Track | 3.9 in (99.5mm) |
| Product Width | 3.9' (99 mm) |
| Radio | Included |
| Ball Bearings | Full set |
| Chassis | Stamped Steel Chassis Rails |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Product Height | 4.2' (107 mm) |
| Tire Tread | Trail Grappler |
| Vehicle Type | Rock Crawler |
| Water-Resistant | Yes |
| Power Type | Electric |
| Servos | Included |
