Hot Racing X-Maxx Steel Spur Gear Upgrade Variety for High Performance Trucks

Hot Racing X-Maxx Steel Spur Gear Upgrade: Dominate with Durable Steel!

Alright listen up, folks! Ditch the boring and feast your eyes on this… We're talking pure, unadulterated awesomeness, a slice of heaven sent straight from the gods of retail! This ain't just a thing, it's an experience, a vibe, a straight-up conversation starter. Imagine the looks you'll get, the stories you'll tell, the legendary status you'll achieve. Seriously, you need this. It's calling your name. Don't fight the urge. Embrace the destiny. Click that button and let the good times roll! Trust me, you'll thank me later. Or maybe you won't, but you'll definitely be cooler. And isn't that what it's all about?

$14.94 $29.88

Tooth Count:

46T

50T

52T

54T

num:

description

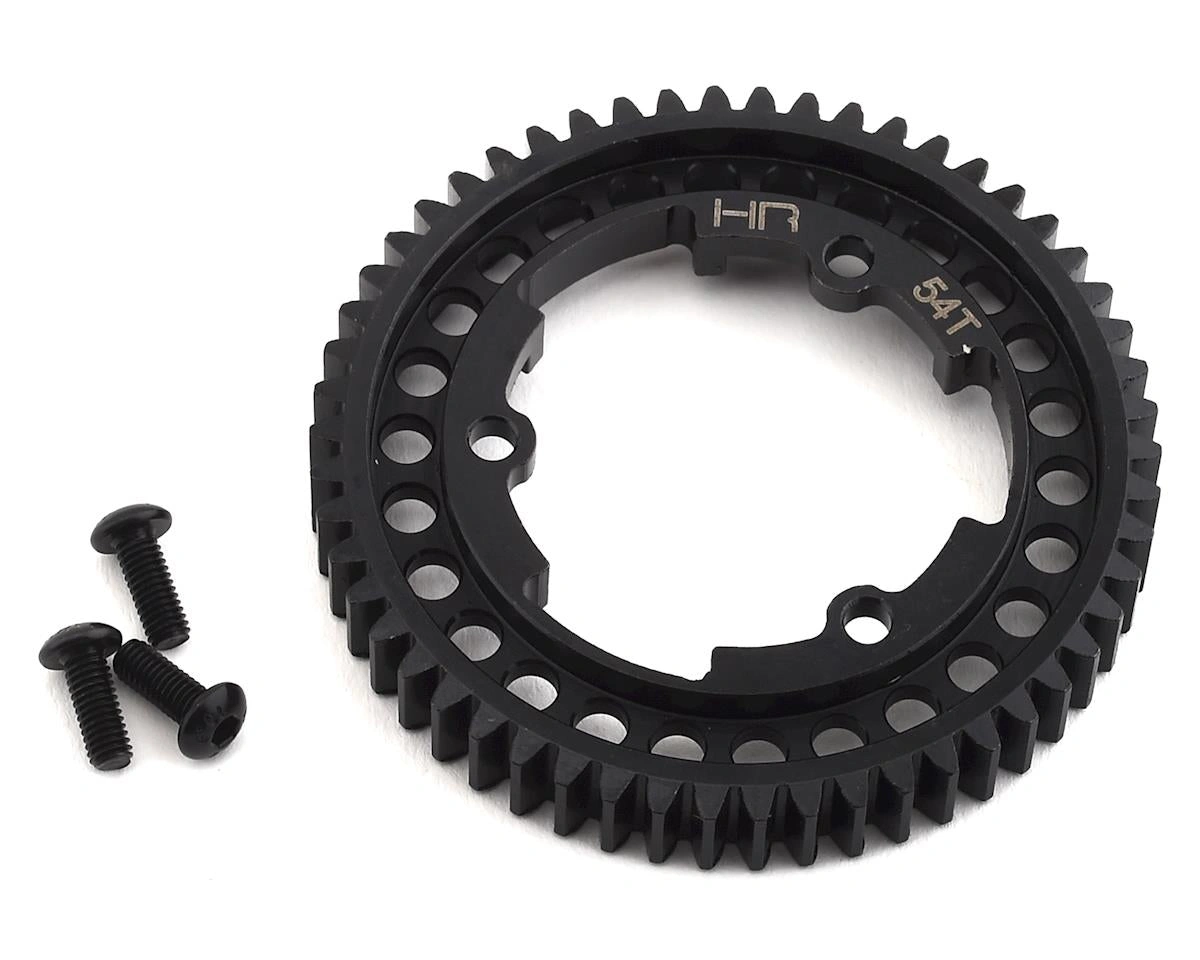

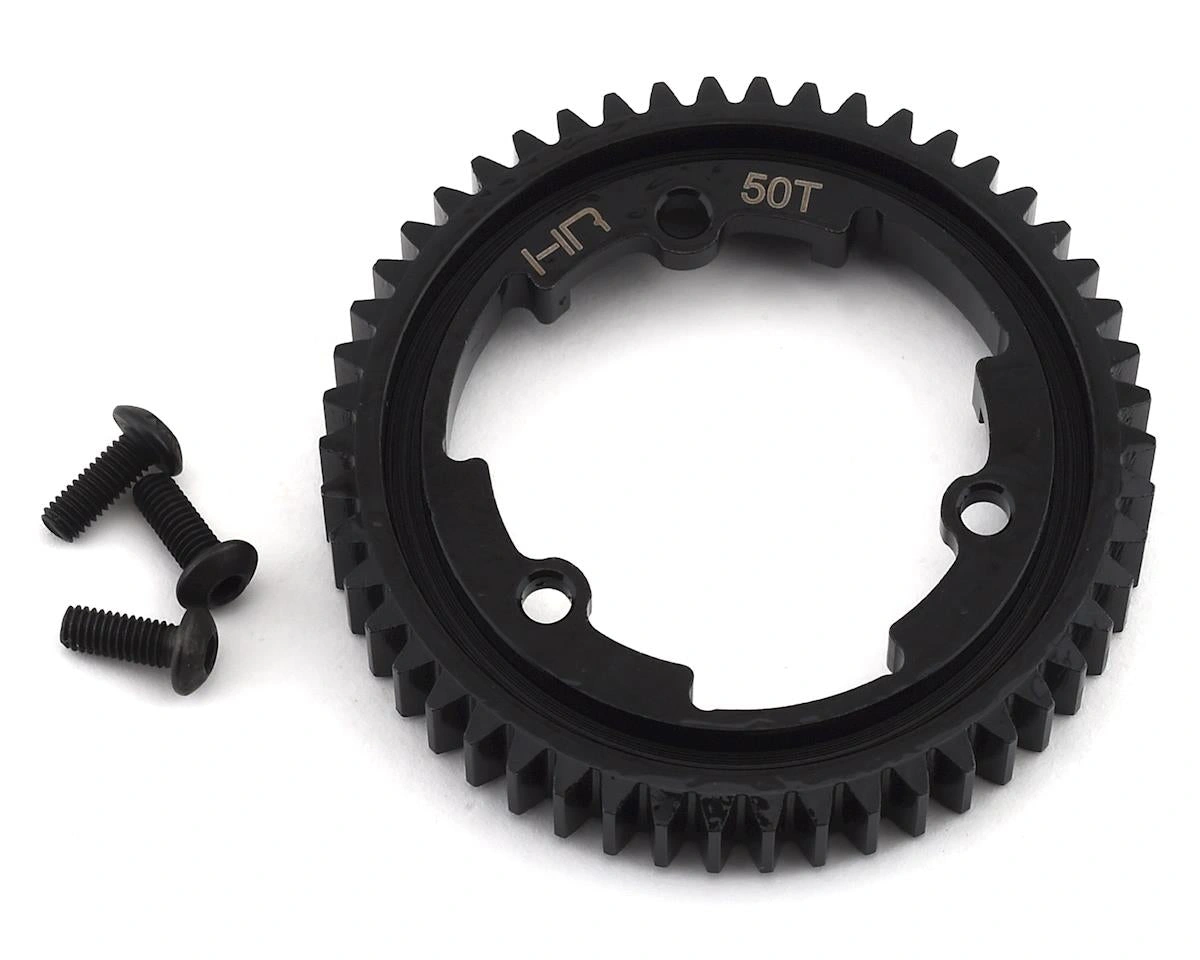

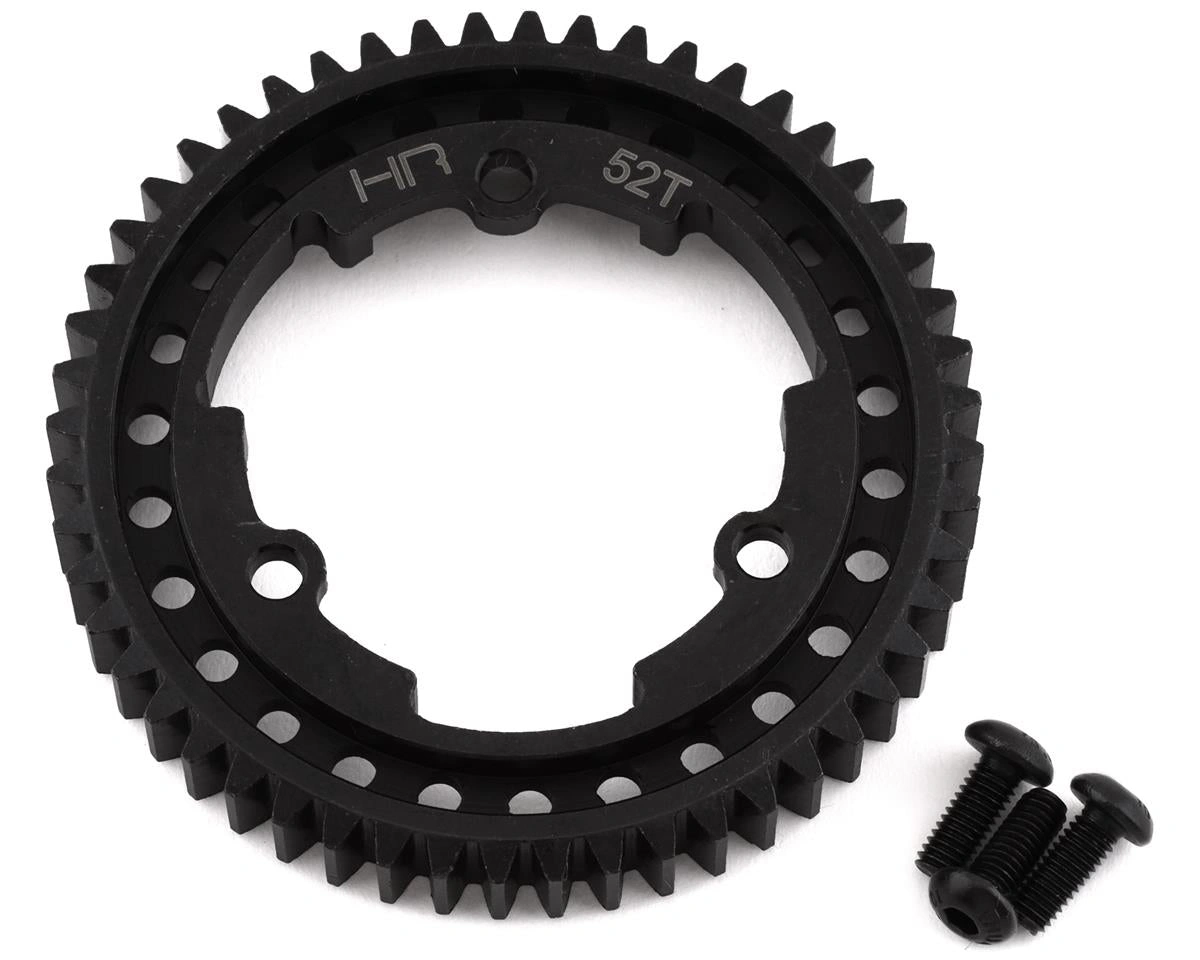

The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, XRT, Maxx 4S and XO-1 models. Choose from 46, 50, 52 and 54 tooth options.

NOTE:

Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

Features:
