E-flite UMX Air Tractor BNF: Tiny Powerhouse Ready for Takeoff! AS3X & SAFE Select Included.
Alright listen up You stumbled upon a treasure a real gem This thing is so good it practically sells itself Imagine the envy of your friends the pure joy of owning something this undeniably awesome It's not just a product it's a statement a lifestyle a whole vibe Get it now before it disappears faster than a free donut at a cop convention Seriously you won't regret this Believe me you need this in your life It's the bee's knees the cat's pajamas the whole shebang Buy it now and thank me later You're welcome in advance.

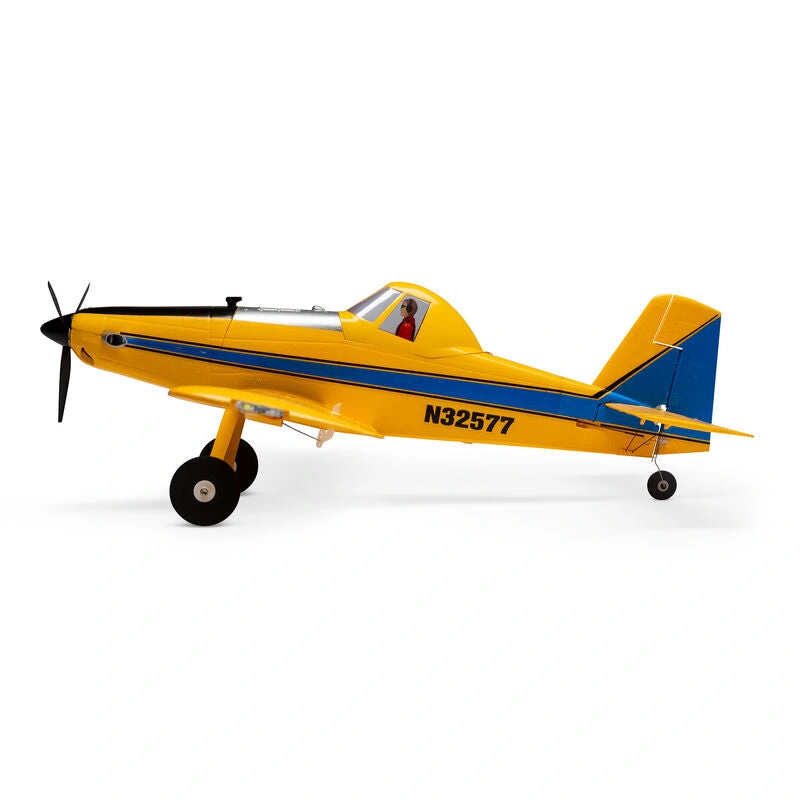

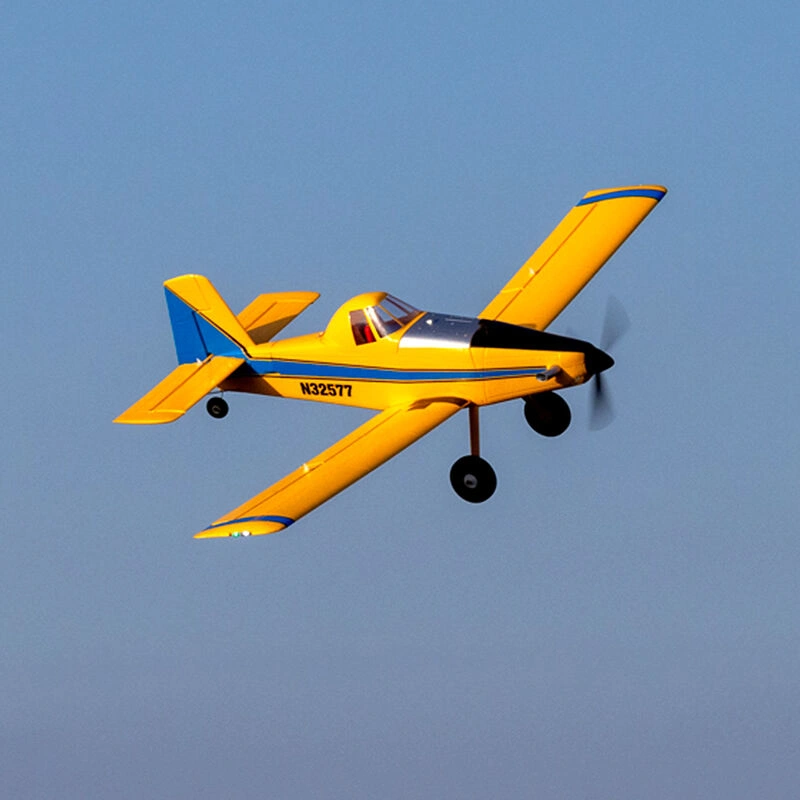

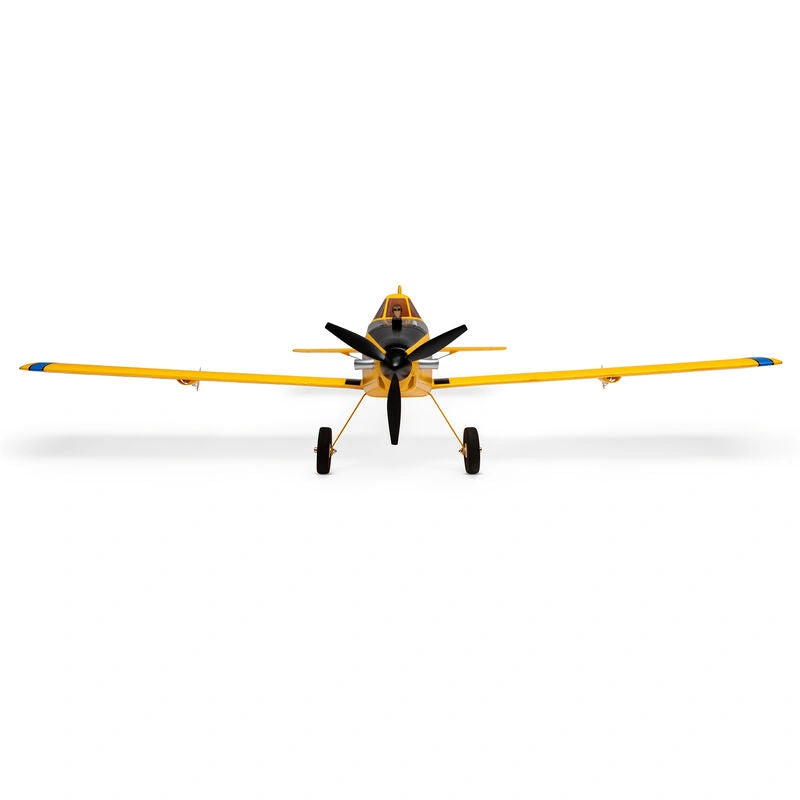

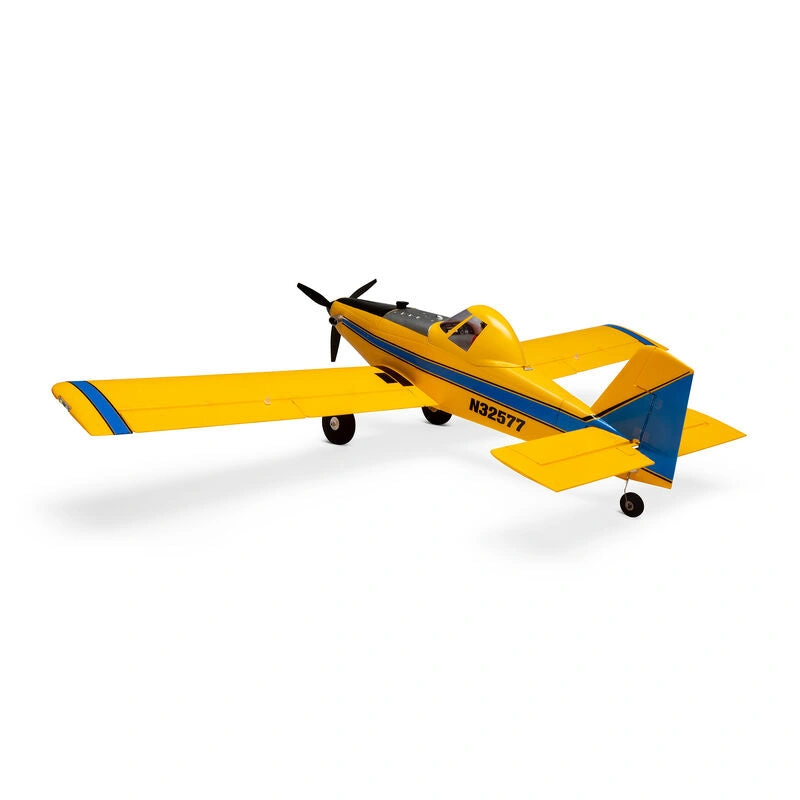

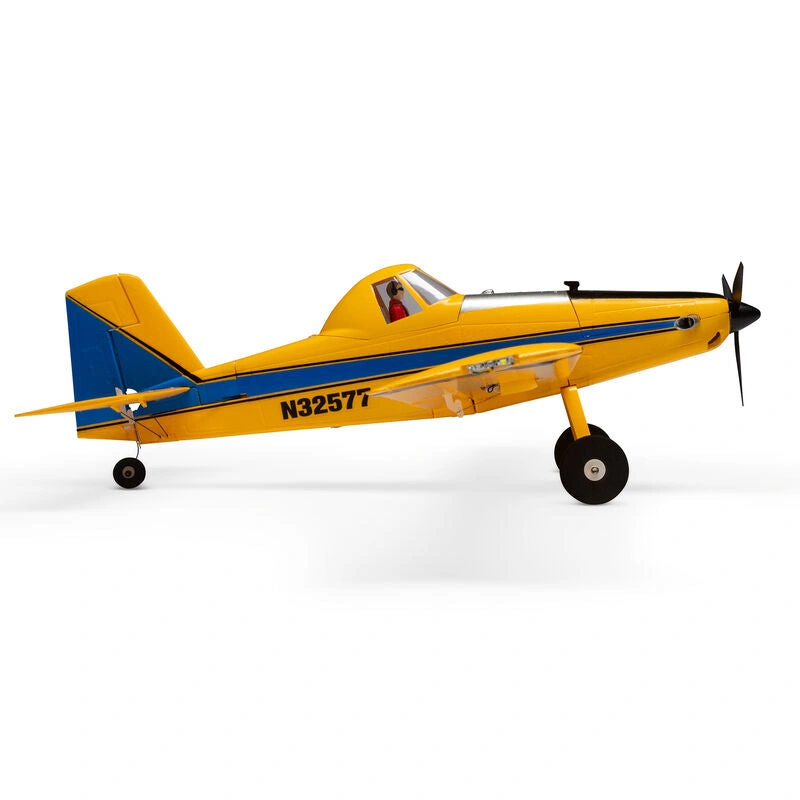

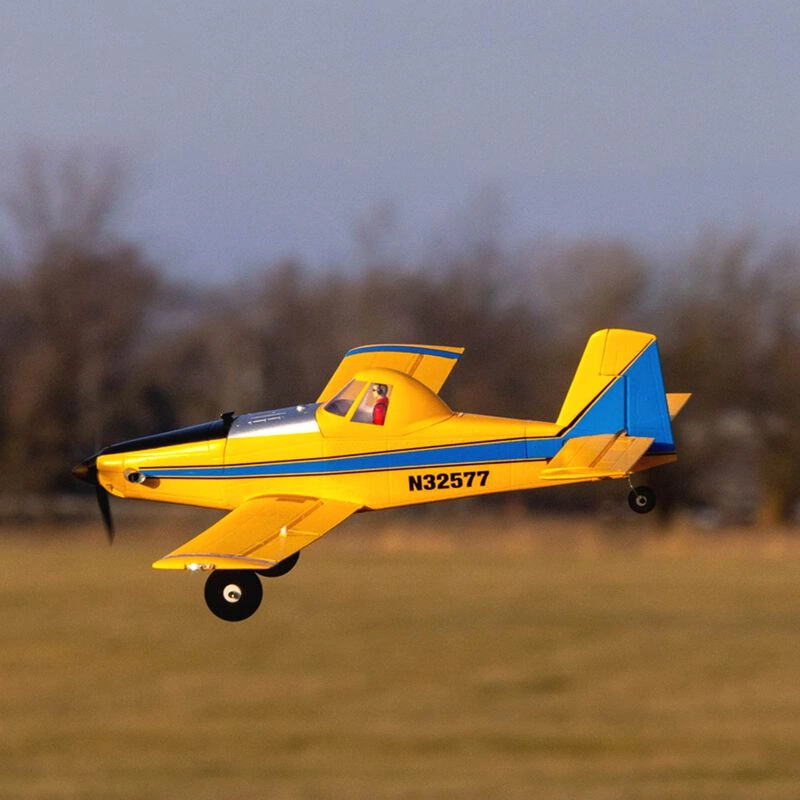

The E-flite® UMX™ Air Tractor is an easy-to-fly ultra-micro version of the crop duster that's a perfect first scale or low-wing model for intermediate and beyond pilots. It features a 2S and 3S compatible power system, functional lights, and flaps!
- Scale replica of the agricultural “crop dusting” utility aircraft including molded-in panel lines, rivets and more
- Ultra-micro sized, uniquely capable, and versatile so it can be flown in more places and smaller spaces
- 2S and 3S compatible motor and ESC for a wide range of performance
- Easier to fly with optional-use SAFE® Select flight envelope protection
- Functional and factory-installed LED landing, navigation, and strobe lights
In The Box
- (1) E-flite® UMX™ Air Tractor
- (5) Spektrum Linear Servos (installed)
- (1) Spektrum Brushless Outrunner Motor (installed)
- (1) Spektrum Control Unit with (1) Receiver and (1) Brushless ESC (installed)
- (1) UMX Air Tractor BNF Basic Instruction Manual
Needed to Complete
- (1) Full-range 6+ channel Spektrum™ DSMX®/DSM2® compatible transmitter
- (1) 2S 7.4V or 3S 11.1V 280–300mAh LiPo with JST-RCY Connector (or JST-PH connector plus a suitable JST-RCY to JST-PH adapter, including SPMXCA327, sold separately)
- (1) Compatible LiPo Charger
Introduction
Texas-based Air Tractor was founded in 1978 and is a leading manufacturer of aircraft built for agricultural, firefighting, and other utility applications. Air Tractor aircraft can be found hard at work over fields and forests in more than 30 countries worldwide. Factory-finished in the familiar, high-visibility yellow and blue trim scheme with molded-in panel lines, rivets and more, the E-flite® UMX™ Air Tractor offers a superb scale appearance you'll be proud to show off everywhere you go. It features exclusive Spektrum™ AS3X® and SAFE® Select technologies, making it a perfect scale low-wing model for intermediate to experienced RC pilots. It's also equipped with functional features including LED navigation and landing lights, flaps, and oversized tires, plus it's capable yet easy to fly making it an ideal choice for your first — or next — scale or low-wing airplane.
Features
- Scale replica of the agricultural 'crop dusting' utility aircraft including molded-in panel lines, rivets and more
- Ultra-micro sized, uniquely capable, and versatile so it can be flown in more places and smaller spaces
- Short Takeoff and Landing (STOL) plus sport flying and aerobatic capabilities
- 2S and 3S compatible motor and ESC for a wide range of performance
- Compatible with the Spektrum™ DXS transmitter included with many RTF models
- Real-time battery voltage telemetry with compatible Spektrum transmitters
- Spektrum receiver with industry-leading 2.4GHz DSMX® technology
- Easier to fly with optional-use SAFE® Select flight envelope protection
- Unmatched stability and locked-in feel of AS3X® technology for smoother performance
- Functional flaps for shorter takeoffs/landings and improved slow speed handling
- Factory-installed and functional LED landing, navigation, and strobe lights
- Oversized tires for the ability to take off and land on a variety of surfaces
- 100% factory-assembled and ready to fly right out of the box
Overview
Air Tractor ag and utility airplanes have earned a reputation for friendly handling, incredible capabilities, and unmatched versatility. Those qualities carry over to the E-flite® UMX™ (Ultra Micro eXtreme) Air Tractor, and along with exclusive Spektrum™ AS3X® and SAFE® Select technologies, make it a perfect scale low-wing model for intermediate to experienced RC pilots. The specially-tuned motor and 3-blade prop provide fantastic scale and sport aerobatic flight performance with 2S 280–300mAh LiPo batteries, or you can install a 3S battery for more power and unlimited vertical without the need for any modifications or upgrades. Functional flaps improve slow-speed handling while also offering Short Take Off and Landing (STOL) capabilities. And because of its convenient ultra-micro size, it can be flown in more places and smaller spaces including many yards, parks, and sports fields, while the oversized tires allow it to fly from paved, dirt, gravel and even some grass surfaces. The factory-applied and fully painted finish provides excellent visibility along with striking scale looks that are accented by LED navigation, strobe and landing lights. Best of all, it arrives 100% factory assembled and ready to fly right out of the box, plus the box includes a handle so it's perfect to use for safe and convenient storage/transport of the model. The E-flite UMX Air Tractor delivers a unique flying experience a wide range of pilots will enjoy, even if it's your first scale or low-wing model!
Video Overview
Bind-N-Fly Completion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly® (BNF®) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!
Telemetry Capable
The UMX™ Air Tractor is equipped with a control unit/flight controller that includes an ESC and Spektrum™ receiver that provides real-time flight battery voltage telemetry to compatible Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6, 8 and 10, the iX12, iX14, iX20 and others) while you fly.
Exclusive Technologies
This ultra-micro Air Tractor is equipped with exclusive Spektrum™ AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make it easier to fly!

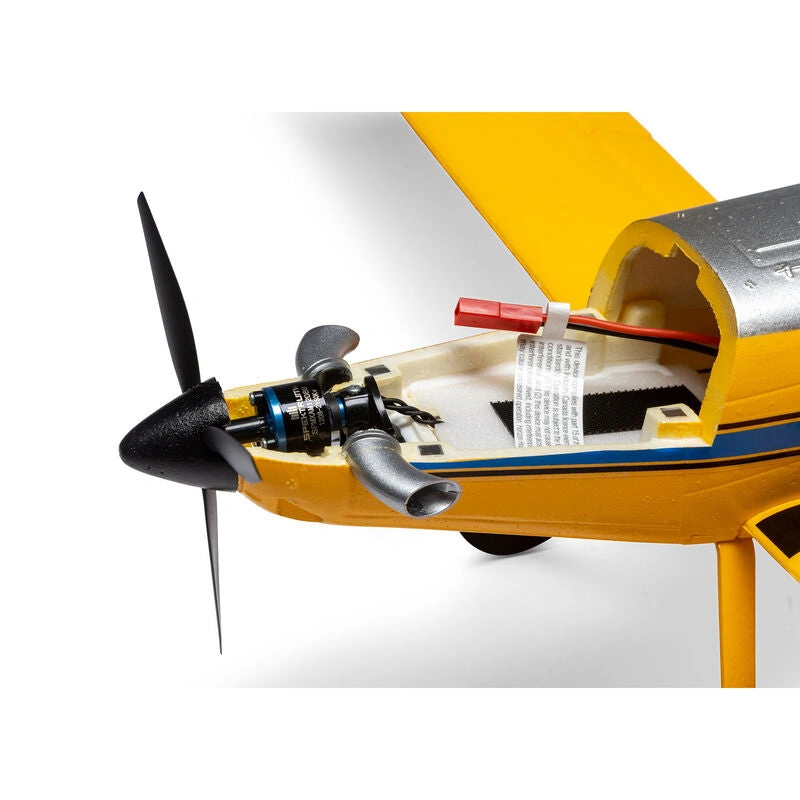

Flexible Power
The factory-installed brushless outrunner motor is 2S and 3S compatible to offer a wide range of 'mild to wild' performance – from slow cruising to maximize flight time, to hovering and unlimited vertical performance!

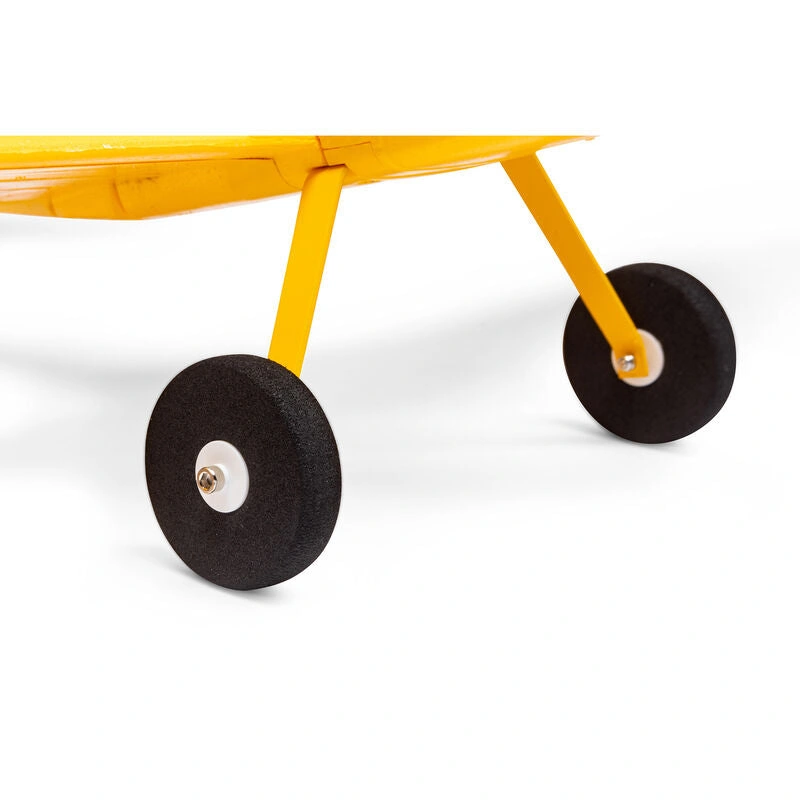

Versatile Gear
The oversized, tundra-style tires soak up bumps and provide excellent prop clearance so you can fly from surfaces that are impossible for most models of this size to handle: including many grass, gravel paths, dirt trails and paved surfaces.
Uniquely Capable
The UMX™ Air Tractor's design makes it capable of slow and scale-like flying, sport flying, and even aggressive aerobatics — for 'mild to wild' flight performance — all in the same flight! Plus, the functional flaps, lightweight airframe, and high-power brushless motor make it possible to spring into the air or float down to land in less distance than many other similar class models!
LED Lights

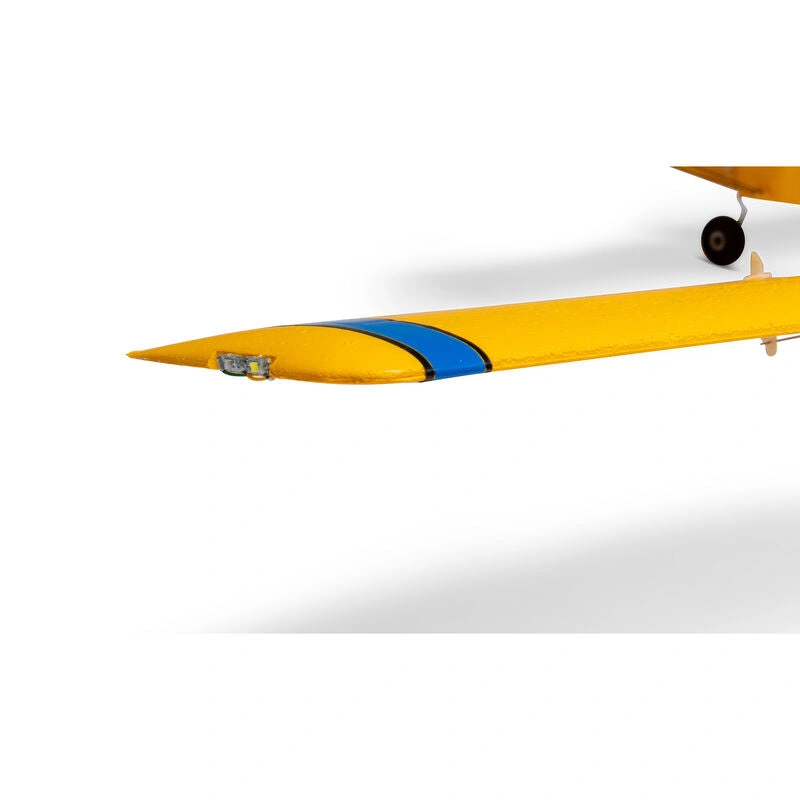

Like the larger E-flite Air Tractor 1.5m model, the UMX™ Air Tractor comes with realistic-looking LED landing, navigation and simulated strobe lights that are factory-installed and powered from the flight battery.
Durable Design
Construction with advanced EPS material delivers a lightweight yet durable airframe. And in the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement/spare parts is readily available.
Fully Factory-Assembled
The UMX™ Air Tractor arrives 100% factory-assembled and ready to fly right out of the box! It's equipped with industry leading Spektrum™ 2.4GHz technology that binds to your 6+ channel DSMX®/DSM2® equipped transmitter so you can be flying within minutes of opening the box.
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly and fly!
This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X® (Artificial Stabilization–3-aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence so you enjoy a sense of stability and precision that makes it feel like you're flying a much larger, expertly tuned aircraft.
If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required.
With SAFE Select enabled, you get:
Pitch and Bank Angle Limits
- These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.
Automatic Self-Leveling
- The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.
Easy Switch Assignment—No Complex Programming Required
- The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds. For UMX models like this one, SAFE Select is automatically assigned to channel 5 (Gear) so you can turn it on and off with any switch assigned to that channel (switch A by default on most Spektrum computer transmitters).

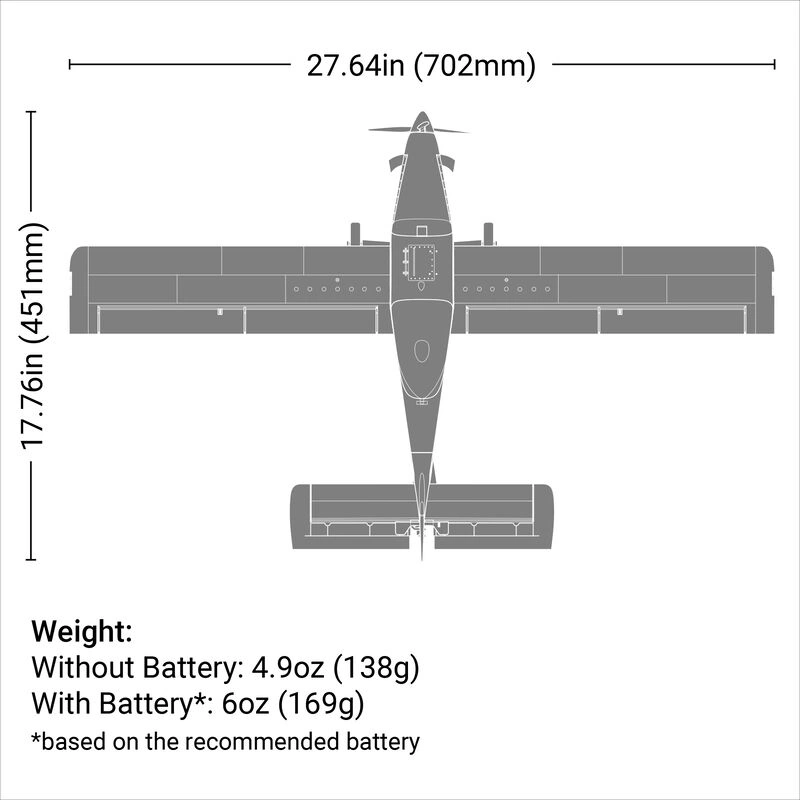

Product Specifications
| Product Weight | 6oz (169g) with 3S 11.1V 300mAh 30C LiPo Battery |
| Battery | Sold Separately |
| Connector Type | JST-RCY |
| Motor Size | 1208 2150kv |
| Product Length | 17.76' (451 mm) |
| Power Type | Electric |
| Servos | Included |
| Skill Level | Level 2 |
| Trim Scheme Colors | Yellow, Blue |
| Wingspan | 27.64' (702 mm) |
| Technology | AS3X and SAFE |
| Minimum Required Radio | Full-range 6+ Channel Spektrum™ DSMX®/DSM2® Compatible Transmitter |
| Radio | Sold Separately |
| LiPo Compatibility | 2S, 3S |
| Completion Level | Bind-N-Fly Basic |
| Propeller Size | 120mm x 70mm 3 Blade |
| Recommended Motor Battery | 3S 11.1V 300mAh 30C LiPo Battery |
| Approximate Assembly Time | No Assembly Required |
| Flaps | Yes |
| Material | Foam |
| Charger | Sold Separately |
| Receiver | Included |
| Motor Type | Brushless |
| Speed Control | Included |
